MSL2120GR

Name: MSL2120GR
Brand: FEDERAL SIGNAL INDUSTRIAL
SKU: MSL2120GR
Price: 6763.09 MXN
Availability: OutOfStock

Marca : FEDERAL SIGNAL INDUSTRIAL

Referencia : MSL2120GR

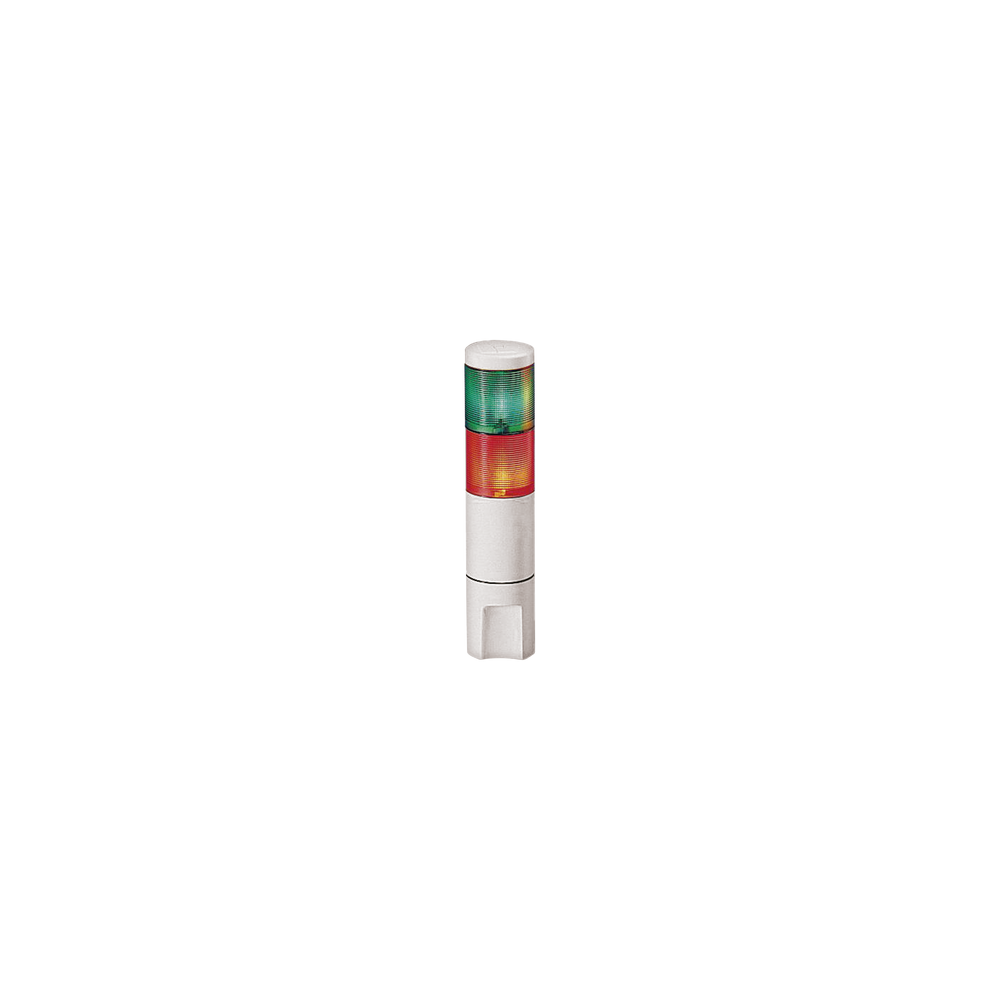

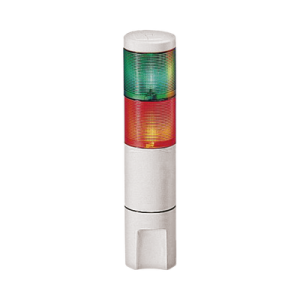

MSL2120GR Indicador de estado LED MicroStat 2 niveles UL y cUL 120Vca verde rojo

Sin Existencia / Consultar Tel. 81 1107 2808

Sin Stock

$6,763.09

IVA incluido

Cantidad

Agotado

Solicitar Información por Whatsapp

Solicitar Información por Correo

MSL2120GR Indicador de estado LED MicroStat, 2 niveles, UL y cUL, 120Vca, verde, rojo MSL2120GR

FEATURES

Federal Signal’s MicroStat® is a compact Type 4X status indicator Type 1 with optional sounder. Ideal for OEM applications the MicroStat comes pre-assembled as 1- 2- 3- 4- or 5-high light units. The user selects combinations from five colors: Amber Blue Clear Green and Red. O-rings between each segment provide a water-tight and dust-tight seal. The base of each light can be surface or pipe mounted (3/4-inch NPT).

The lenses lock together and snap apart with a simple twisting motion allowing for easy lamp changes and quick lens resequencing. A rugged vibration-resistant thick-filament wedge lamp fills each lens with light providing excellent optical performance.

Wire connections are made through a 2-piece terminal block. The MicroStat is designed to work with PLC outputs including “Triacs”.

An optional sound module can be installed in the top position of any MicroStat as one of the 5 units. The Sound Module Kit consists of a slotted grille and board-mounted piezoelectric horn. The sounder plugs directly into the wedge socket.

SPECIFICATIONS

Mount	Surface
	3/4 Pipe
Voltage	24VAC/VDC
	120VAC
Operating Current	.2 Amps in 1-High
	.4 Amps in 2-High
	.6 Amps in 3-High
	.8 Amps in 4-High
	1.0 Amps in 5-High
Light Source/Lamp Style	Wedge Lamp #655
Lamp Life	7 000 Hours
Operating Temperature Minimum	32 °F
Operating Temperature Maximum	104 °F
Enclosure Rating	Type 4X
Dome Colors	Amber
	Blue
	Clear
	Green
	Red
Operating Temperature Range	32°F to 104°F
Net Weight
1-high	0.40 lb
2-high	0.55 lb
3-high	0.65 lb
4-high	0.85 lb
5-high	1 lb
Shipping Weight
1-high	0.70 lb
2-high	0.85 lb
3-high	1.30 lb
4-high	1.50 lb
5-high	1.65 lb

MSL2120GR Indicador de estado LED MicroStat, 2 niveles, UL y cUL, 120Vca, verde, rojo MSL2120GR
